BD FACSDuet™ Sample Preparation System

• Data reproducibility with standardization of processes and protocols
• Consistency in operations with an intuitive software interface minimizing training need and variations due to different operators’ experience. System automation eliminates manual steps and the risk for generating errors and testing repetition.

• Efficiency and productivity with predictable sample throughput; the continuous specimen loading enables predictable volume processing with creation of lab test volume capacity

• Traceability of specimen, sample, reagents and worklists eliminates manual data transcription and risk for error, helping conform to ISO 15189 accreditation

• Modularity and flexibility to accommodate a wide range of lab needs


Find out more from the BD FACSDuet^(TM) System brochure

The BD FACSDuet™ Sample Preparation System answers the growing needs of laboratories to handle different types and sizes of specimen tubes and supports hospitals’ needs for consolidation and testing centralization.

The BD FACSDuet Sample Preparation System:

Delivers the flexibility that is required by supporting a variety of blood collection tubes from different manufacturers, including BD Vacutainer^®, Sarstedt S-Monovette^®, Greiner and Streck Tubes.

Multiple tube adaptors are available which are barcoded and colour coded for easy identification supporting accurate tube piercing and sample volume dispensing.

Up to 40 specimen tubes can be accommodated at any given time in four racks holding 10 specimens each, driving workflow efficiency and throughput.

Two type of specimen racks are available, one of which is specifically designed for pediatric tubes (B).

Specimen traceability and automated worklist creation are guaranteed by 5 different barcodes on the specimen rack, identifying:

1. Rack
2. Tube position
3. Empty position
4. Adaptor
5. Specimen

Automated barcode scanning during rack insertion enables

• Patient specimen traceability
• Pipetting management
• Retrieving patient and assay information from the laboratory information system (LIS) for automated worklist creation

Worklist traceability is enabled by scanning the carrier barcode, which is associated to a specific worklist and defined specimens.

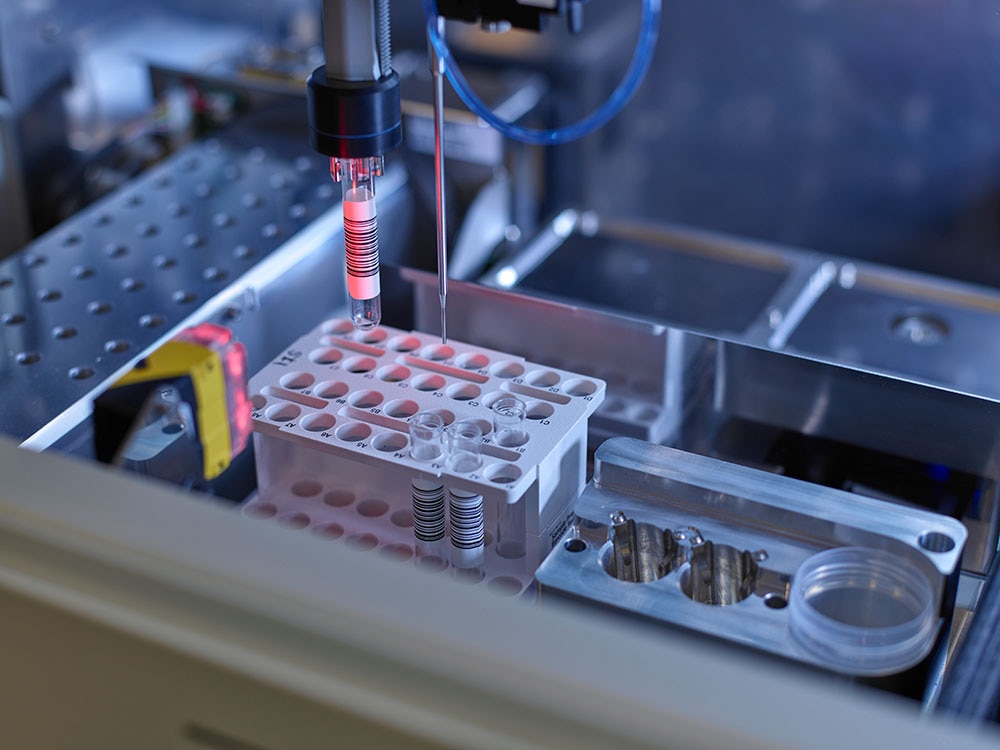

Secondary tubes are loaded in the BD FACSDuet™ Sample Preparation System onto 30 or 40 tube sample carriers, compatible with the BD FACSLyric™ Flow Cytometer.

Barcoded secondary tubes are scanned to ensure sample traceability and association to the specimen and the worklist.

Up to three carriers can be loaded at the same time onboard the BD FACSDuet™ Sample Preparation System, allowing for increased sample throughput.

Refer to the technical specifications for more information.

The system enables a wide variety of reagent vials with the use of vial adaptors.

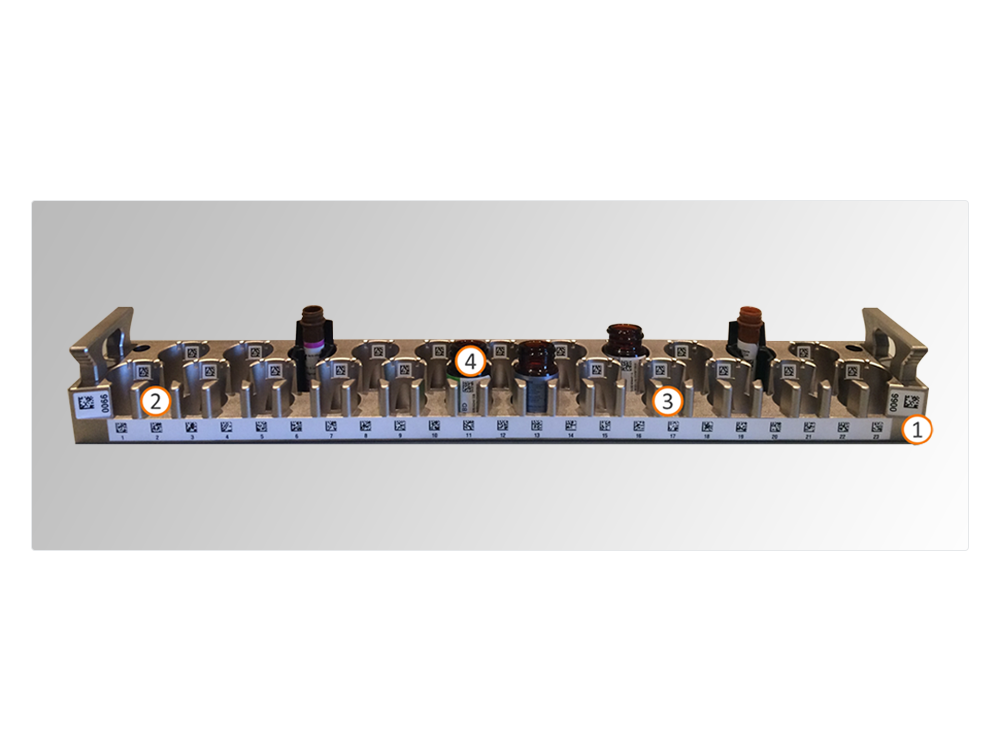

In addition to the barcode on the antibody vial (4), the reagent rack has 3 barcodes:  identifying the rack (1), identifying the reagent position (2), and identifying the empty position (3). Barcodes on reagent racks and antibody vials drive reagent traceability, efficient antibody management and reduction of reagent waste.

Reagent cocktailing functionality allows on-board automated antibody cocktail preparation, eliminating the risk for errors in manual pipetting and driving automated recording of all used antibodies for easier tracking and auditing.

Cap racks are available to avoid misplacing caps and antibody cross-contamination.
